Nitrous Express Water Injection Low Flow Safety Switch - ( Nitrous Express 15040 )

NX direct port water methanol systems inject the water methanol mixture directly into each intake runner providing excellent distribution to each cylinder. These systems include a high pressure electric pump, stainless steel hard lines, filtered nozzles, nickel plated fittings and a composite reservoir. Stage one systems include a wide open throttle activation switch while stage 2 and stage 3 systems include digital progressive controllers that control water methanol output. Stage 2 controllers are adjusted by setting rotary dials on the progressive box. Stage 3 controllers include a LCD display and can be finely adjusted for low, mid and high airflow levels. The LCD Screen displays boost pressure, fuel injector duty cycle, as well as water-methanol injection percent.

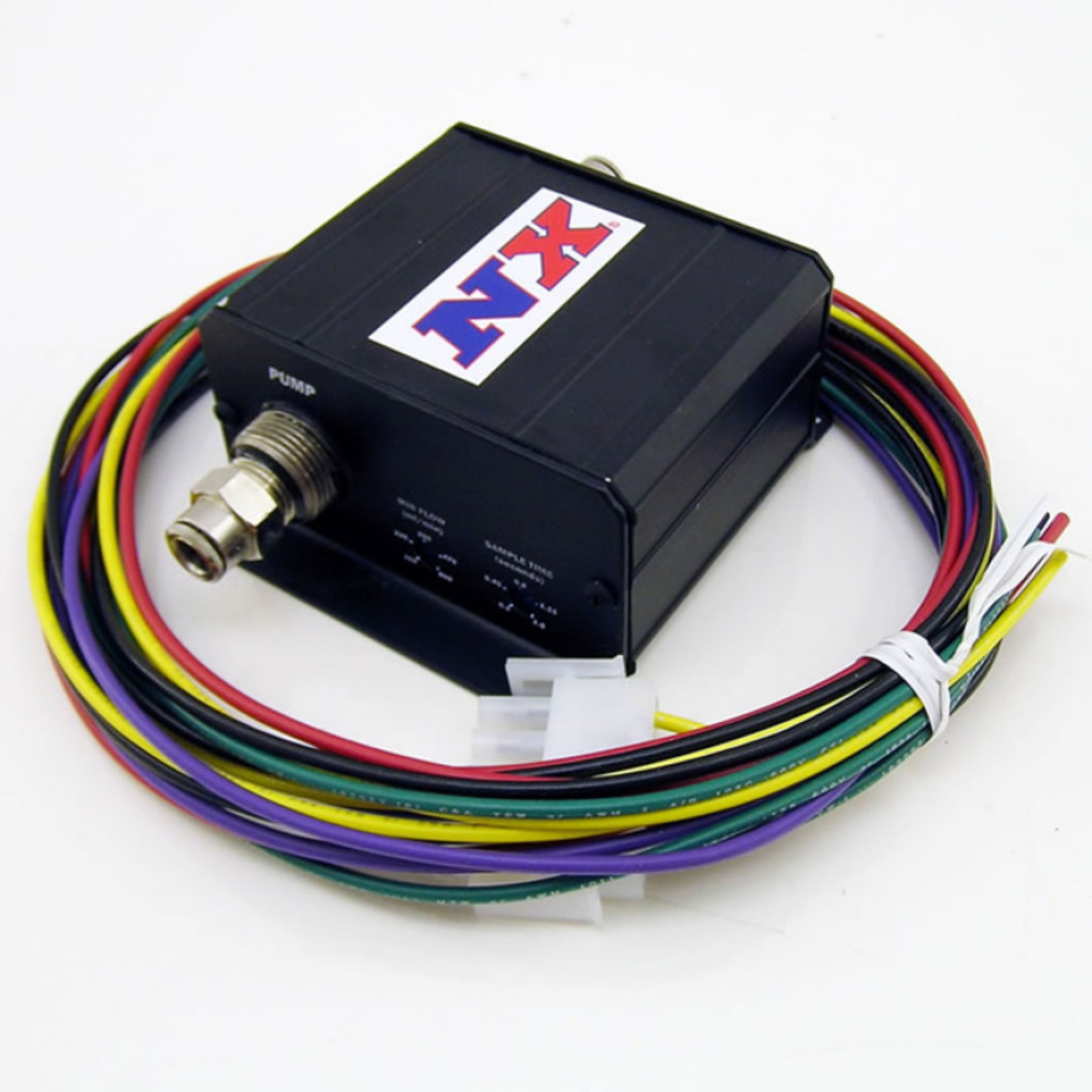

The Low Flow Safety Switch for use with NX water/methanol injection systems can trigger a boost cut solenoid or a timing retard module. It is designed to activate a safety mode in case you run out of Water/Methanol. , , The Low Flow Safety Switch allows for a safe tune in those instances where no Water/Methanol injection is present and an aggressive tune when Water/Methanol is utilized. , , 1. Fully adjustable alarm set point , 2. Retard Timing- detailed instructions on integrating with MSD, J&S Safeguard, & other popular aftermarket ignitions., 3. Optional Solenoids to open waste gates or bypass valves to reduce boost., 4. Faster response time and can display real time flow in ml/min , 5. Overflow alarm for leak detection.
