COMP Cams offers a complete line of valve stem seals, from the umbrella seals to the positive-stop Teflon seal. These seals are a must to keep unwanted oil from entering the combustion chamber through the clearance in the valve guides. The umbrella seal is normally used when a larger-than-stock diameter spring is used, in the case of a double spring, the positive-stop Teflon seal is used. The umbrella seals require no machining, but with the Teflon seal it is necessary to disassemble the heads and machine the top of the guide with a special .530 diameter cutter. Whenever you are planning an engine overhaul or a cam change, don't forget the valve seals.
PTFE; Seal; Valve Guide; Valve Guide Seal; Valve Stem Seal; Valve Seals; 5/16" Valve Seals; 11/32" Valve Seals; .530" Valve Seal; Umbrella; O-Ring Seals; Viton Seals; 8 mm Seals
Typically requiring no machine work, our 502 umbrella seals are a great option for stock guide applications with 11/32" valves needing a seal replacement.
Available in a set of 12 under 502-12, Available individually under 502-1

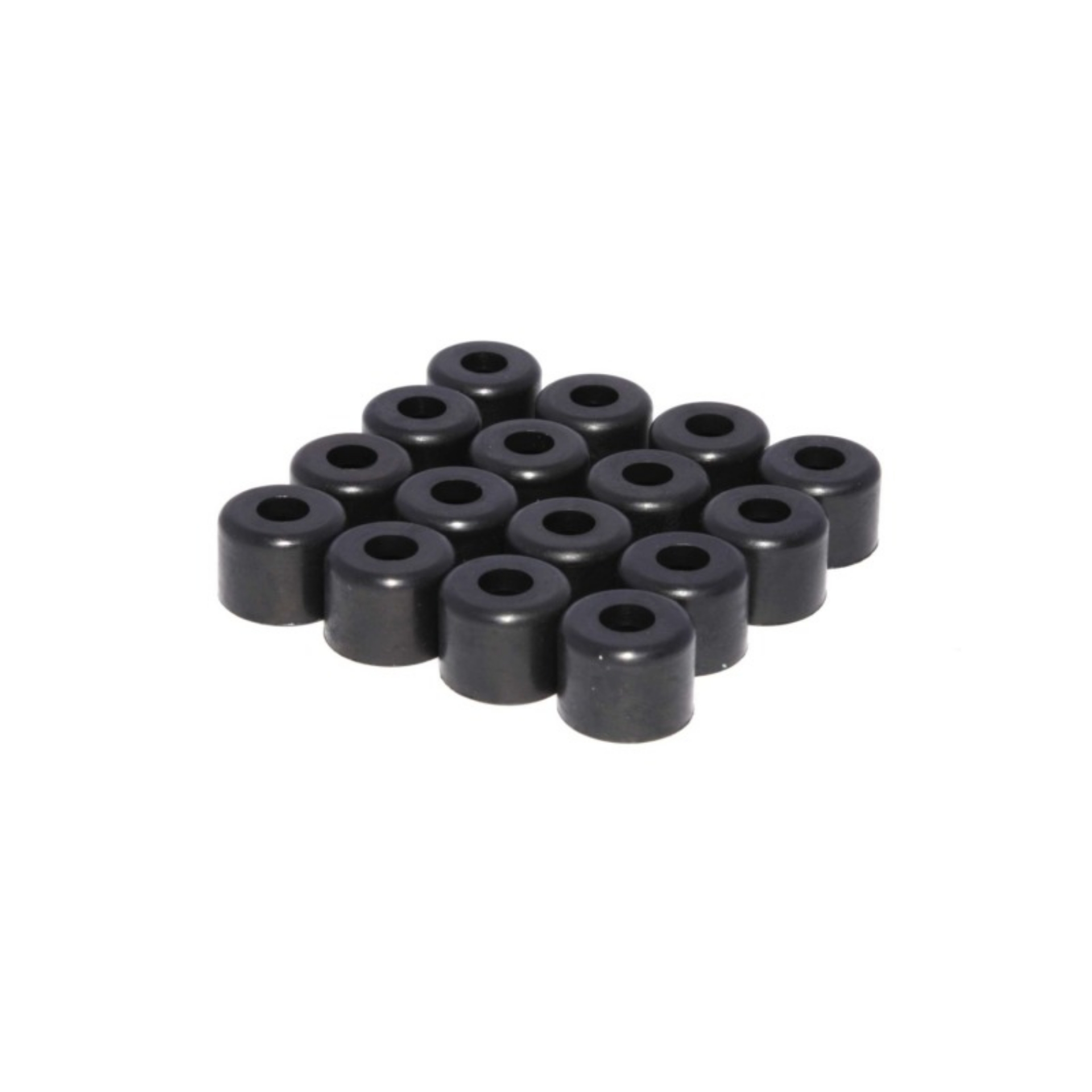

Set of 16 Umbrella Valve Seals for Stock Guide Size, 11/32" Valve Stem
Engines w/ Stock/Unmodified valve guides and 11/32" Valve Stems
Umbrella Seals Stock Guide 11/32" Valve
COMP Cams Valve Seals 11/32in UmBRella
Engine Valve Stem Oil Seal Set
Valve Stem Oil Seal
