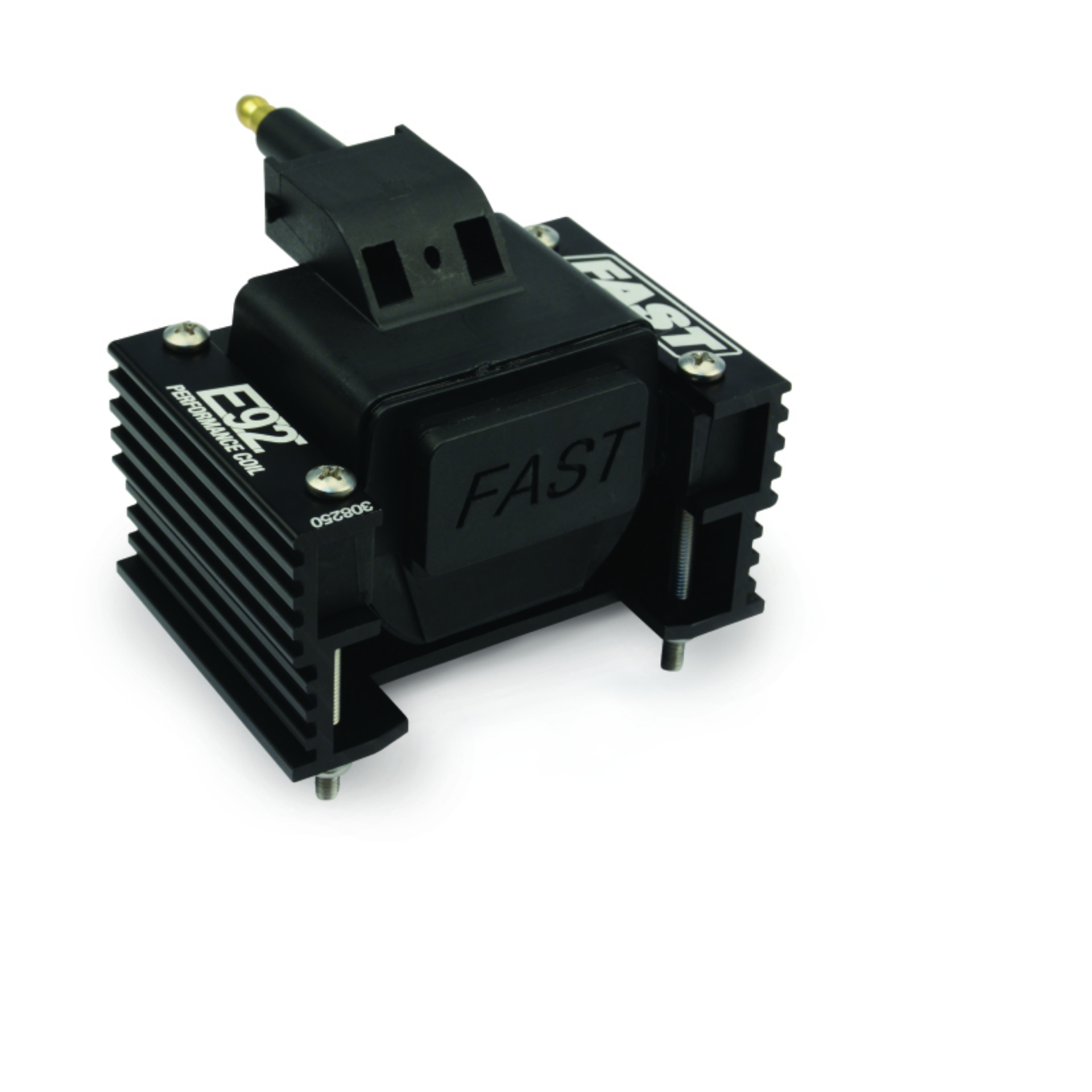

FAST Coil FAST E92 E-Core - ( FAST 308250 )

Primary resistance .20 ohms, secondary resistance .82 ohms; Primary inductance 1.9mH, secondary inductance 6.8 mH; High-output E-core coils for race and street; Up to 70% higher energy at the spark plug than stockfor maximum performance, race or street; E-core design with closed magnetic path reduces leakage and improves energy transfer to the spark plug, for maximum ignition performance.; Plastic overmolded core with improved urethane encapsulation material provides protection against severe shock, harsh vibration, and high voltage breakdown by eliminating the exposed E-core; Insulated primary connector for enhanced safety with mating connector included; Improved coil wire retention and longer creep path protects against high voltage arcing; 50 state legal CARB E.O. D-225-60

The E92 Coil was designed for high performance street engines running an E6-series Ignition Control. The efficient E-core construction provides a secure housing that can handle the rigors of street and performance use while producing a high output spark. The extruded metal housing provides a durable mount and acts as an effective heat synch as well.

The E92 Coil was designed for high performance street engines running an E6-series Ignition Control. The efficient E-core construction provides a secure housing that can handle the rigors of street and performance use while producing a high output spark. The extruded metal housing provides a durable mount and acts as an effective heat sink as well.

Plastic overmolded core with improved urethane encapsulation material provides protection against severe shock, harsh vibration, and high voltage breakdown by eliminating the exposed E-core

E-core design with closed magnetic path reduces leakage and improves energy transfer to the spark plug, for maximum ignition performance.

Up to 70% higher energy at the spark plug than stock for maximum performance, race or street

Improved coil wire retention and longer creep path protects against high voltage arcing

Insulated primary connector for enhanced safety with mating connector included

Primary resistance .20 ohms, secondary resistance .82 ohms

The E92 features the more efficient E-Core Construction

Primary inductance 1.9mH, secondary inductance 6.8 mH

High-output E-core coils for race and street

E92 Performance/Street Ignition Coil

50 state legal CARB E.O. D-225-60

E92 Performance Ignition Coil

FAST Coil FAST E92 E-Core

E92 Street Coil

Ignition Coil

E92 Coil
