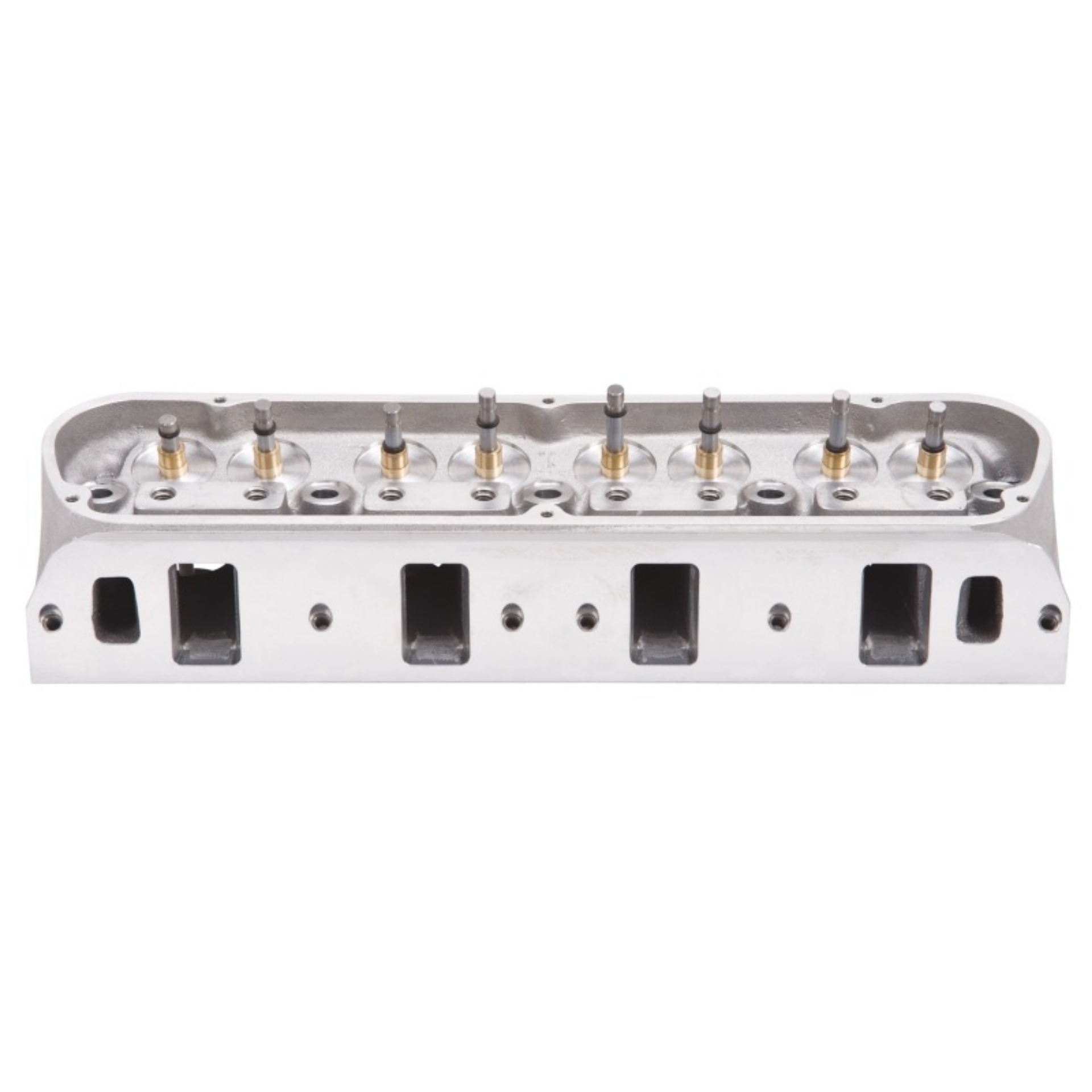

Edelbrock Single Victor Jr 289-351W w- Valves Head - ( Edelbrock 77179 )

Cylinder Head Specifications: Combustion chamber volume:-?60cc / 70cc, Intake runner volume:-?210cc, Intake runner volume:-?210cc, Exhaust runner volume:-?75cc, Intake valve diameter:-?2.05in, Intake valve diameter:-?2.05in, Exhaust valve diameter:-?1.60in, Valve stem diameter:-?11/32in, Valve guides:-?Manganese bronze, Deck thickness:-?5/8in, Valve spring diameter:-?1.55, Valve spring maximum lift:-?.650in flat, .670in roller (A), Rocker stud:-?7/16in, Guideplate:-?Hardended steel, Pushrod diameter:-?5/16in, Valve angle:-?20, Exhaust port location:-?Raised .130in, Spark plug fitment:-?14mm x 3/4 reach, gasket seat. INSTALLATION NOTE: Check cam manufacturer's specs for compatibility with valve springs. Recommended valve sizes listed. Match with Edelbrock head gasket sets. Use Head Bolt Kits for easy installation. These heads require the use of a 14mm x 3/4in reach, flat gasket spark plug with a heat range appropriate to your application. Deck thickness: 5/8in, rocker stud diameter: 7/16in, pushrod diameter: 5/16in (width of slot in guide plate).

Cylinder Head Specifications: Combustion chamber volume: 60cc / 70cc; Intake runner volume: 210cc; Intake runner volume: 210cc; Exhaust runner volume: 75cc; Intake valve diameter: 2.05"; Intake valve diameter: 2.05"; Exhaust valve diameter: 1.60"; Valve stem diameter: 11/32"; Valve guides: Manganese bronze; Deck thickness: 5/8"; Valve spring diameter: 1.55; Valve spring maximum lift: .650" flat; .670" roller (A); Rocker stud: 7/16"; Guideplate: Hardended steel; Pushrod diameter: 5/16"; Valve angle: 20°; Exhaust port location: Raised .130"; Spark plug fitment: 14mm x 3/4 reach, gasket seat. INSTALLATION NOTE: Check cam manufacturer's specs for compatibility with valve springs. Recommended valve sizes listed. Match with Edelbrock head gasket sets. Use Head Bolt Kits for easy installation. These heads require the use of a 14mm x 3/4" reach, flat gasket spark plug with a heat range appropriate to your application. Deck thickness: 5/8", rocker stud diameter: 7/16", pushrod diameter: 5/16" (width of slot in guide plate).

The Edelbrock 77179 Victor Jr. Small Block Ford cylinder head offers high horsepower potential on competition level engines and are compatible with OE valve train and pistons for bolt-on convenience.

Edelbrock Intake Manifold Bolt Set for Big-Block Chevy Edelbrock manifolds.

Edelbrock; SBF; Head; V8; Cylinder Heads; 77179; Ford; Small Block Ford

Edelbrock, SBF, Head, V8, Cylinder Heads, 77179, Ford, Small Block Ford

Edelbrock Single Victor Jr 289-351W; W/Valves Head

Edelbrock Single Victor Jr 289-351W w/ Valves Head

Victor Jr Small-Block Ford Cylinder Head W/ Valves

Victor Jr Small-Block Ford Cylinder Head W/Valves

Single Victor Jr 289-351W; W/Valves Head

Ford:Small-Block:289 (4.7L)-351W (5.8L)
