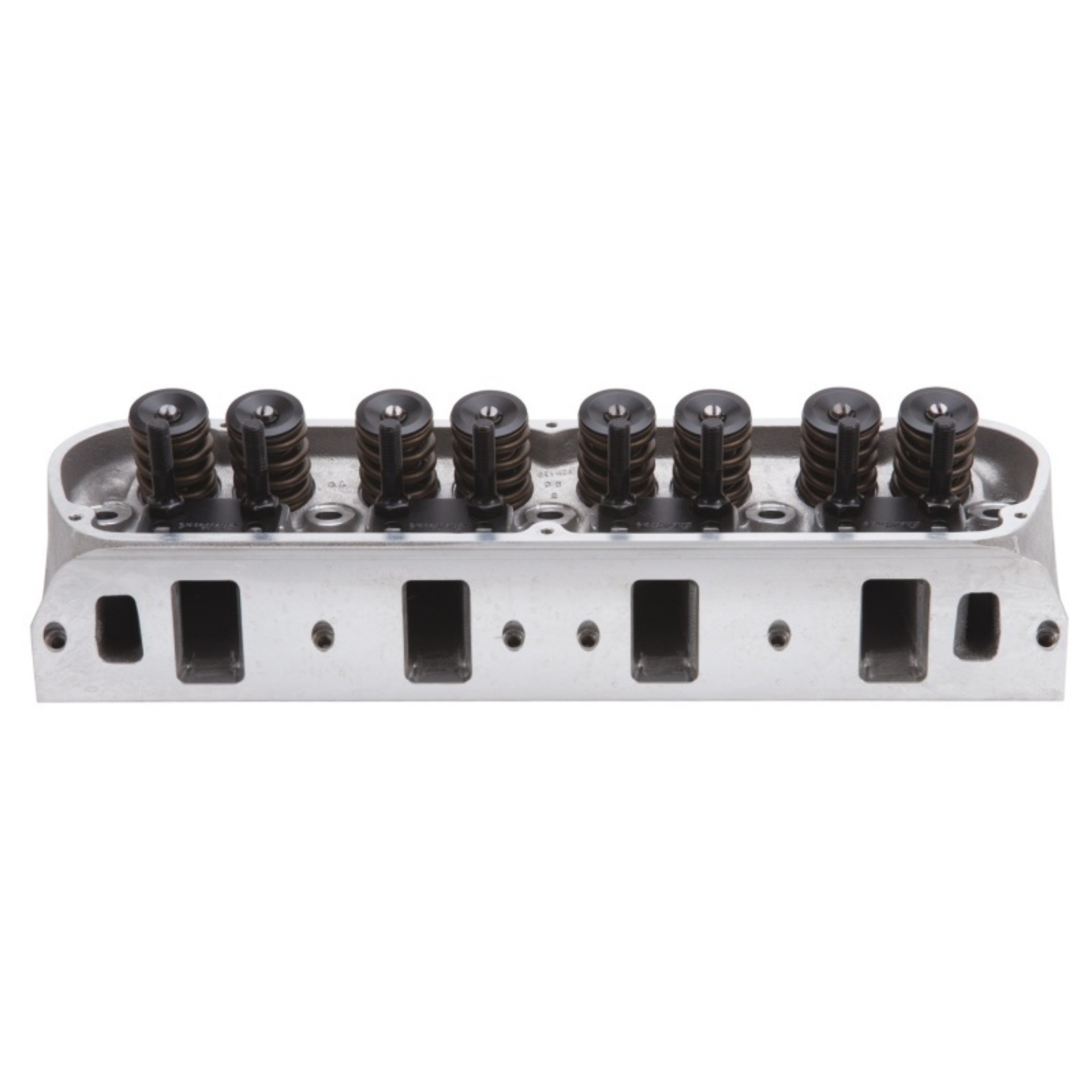

Edelbrock Single Victor Jr 289-351W-Roll-Lft Head - ( Edelbrock 77199 )

Cylinder Head Specifications: Combustion chamber volume:-?60cc / 70cc, Intake runner volume:-?210cc, Intake runner volume:-?210cc, Exhaust runner volume:-?75cc, Intake valve diameter:-?2.05in, Intake valve diameter:-?2.05in, Exhaust valve diameter:-?1.60in, Valve stem diameter:-?11/32in, Valve guides:-?Manganese bronze, Deck thickness:-?5/8in, Valve spring diameter:-?1.55, Valve spring maximum lift:-?.650in flat, .670in roller (A), Rocker stud:-?7/16in, Guideplate:-?Hardended steel, Pushrod diameter:-?5/16in, Valve angle:-?20, Exhaust port location:-?Raised .130in, Spark plug fitment:-?14mm x 3/4 reach, gasket seat. INSTALLATION NOTE: Check cam manufacturer's specs for compatibility with valve springs. Recommended valve sizes listed. Match with Edelbrock head gasket sets. Use Head Bolt Kits for easy installation. These heads require the use of a 14mm x 3/4in reach, flat gasket spark plug with a heat range appropriate to your application. Deck thickness: 5/8in, rocker stud diameter: 7/16in, pushrod diameter: 5/16in (width of slot in guide plate).

Cylinder Head Specifications: Combustion chamber volume: 60cc / 70cc; Intake runner volume: 210cc; Intake runner volume: 210cc; Exhaust runner volume: 75cc; Intake valve diameter: 2.05"; Intake valve diameter: 2.05"; Exhaust valve diameter: 1.60"; Valve stem diameter: 11/32"; Valve guides: Manganese bronze; Deck thickness: 5/8"; Valve spring diameter: 1.55; Valve spring maximum lift: .650" flat; .670" roller (A); Rocker stud: 7/16"; Guideplate: Hardended steel; Pushrod diameter: 5/16"; Valve angle: 20°; Exhaust port location: Raised .130"; Spark plug fitment: 14mm x 3/4 reach, gasket seat. INSTALLATION NOTE: Check cam manufacturer's specs for compatibility with valve springs. Recommended valve sizes listed. Match with Edelbrock head gasket sets. Use Head Bolt Kits for easy installation. These heads require the use of a 14mm x 3/4" reach, flat gasket spark plug with a heat range appropriate to your application. Deck thickness: 5/8", rocker stud diameter: 7/16", pushrod diameter: 5/16" (width of slot in guide plate).

The Edelbrock 77199 Victor Jr. Small Block Ford cylinder head offers high horsepower potential on competition level engines and are compatible with OE valve train and pistons for bolt-on convenience.

Edelbrock Intake Manifold Bolt Set for Chevy LS series #7118, #2908, #29085, #28097, #7518, #7139 & #7140 Edelbrock manifolds.

Edelbrock; SBF; Head; Small Block Ford; Ford; V8; Cylinder Heads; 77199; 289; 302; 351

Edelbrock, SBF, Head, Small Block Ford, Ford, V8, Cylinder Heads, 77199, 289, 302, 351

Victor Jr Small-Block Ford Cylinder Head Hydraulic Roller Camshaft

Edelbrock Single Victor Jr 289-351W-Roll/Lft Head

Single Victor Jr 289-351W-Roll/Lft Head

Ford:Small-Block:289 (4.7L)-351W (5.8L)
