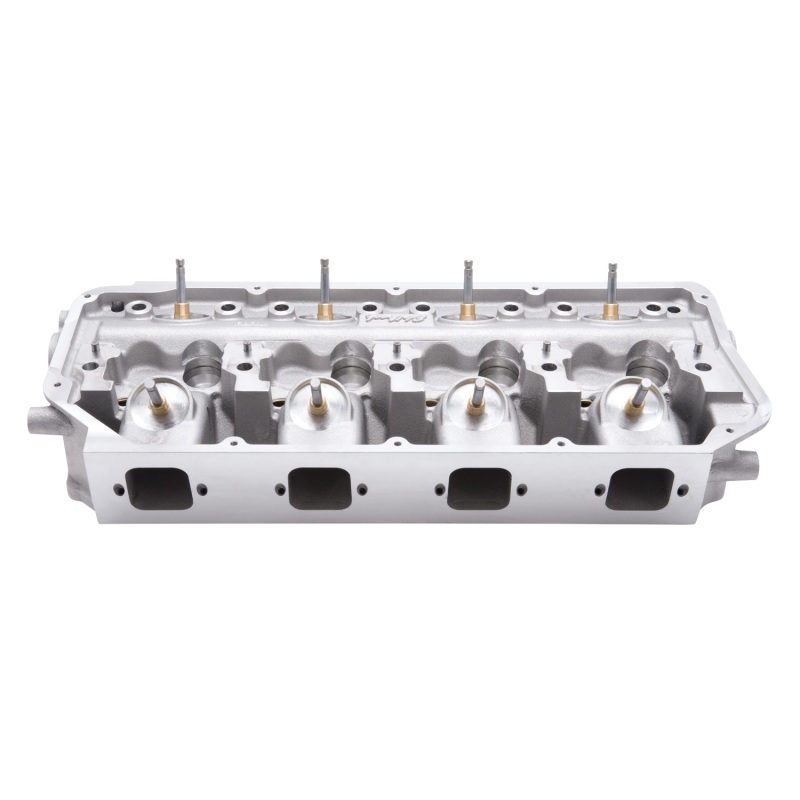

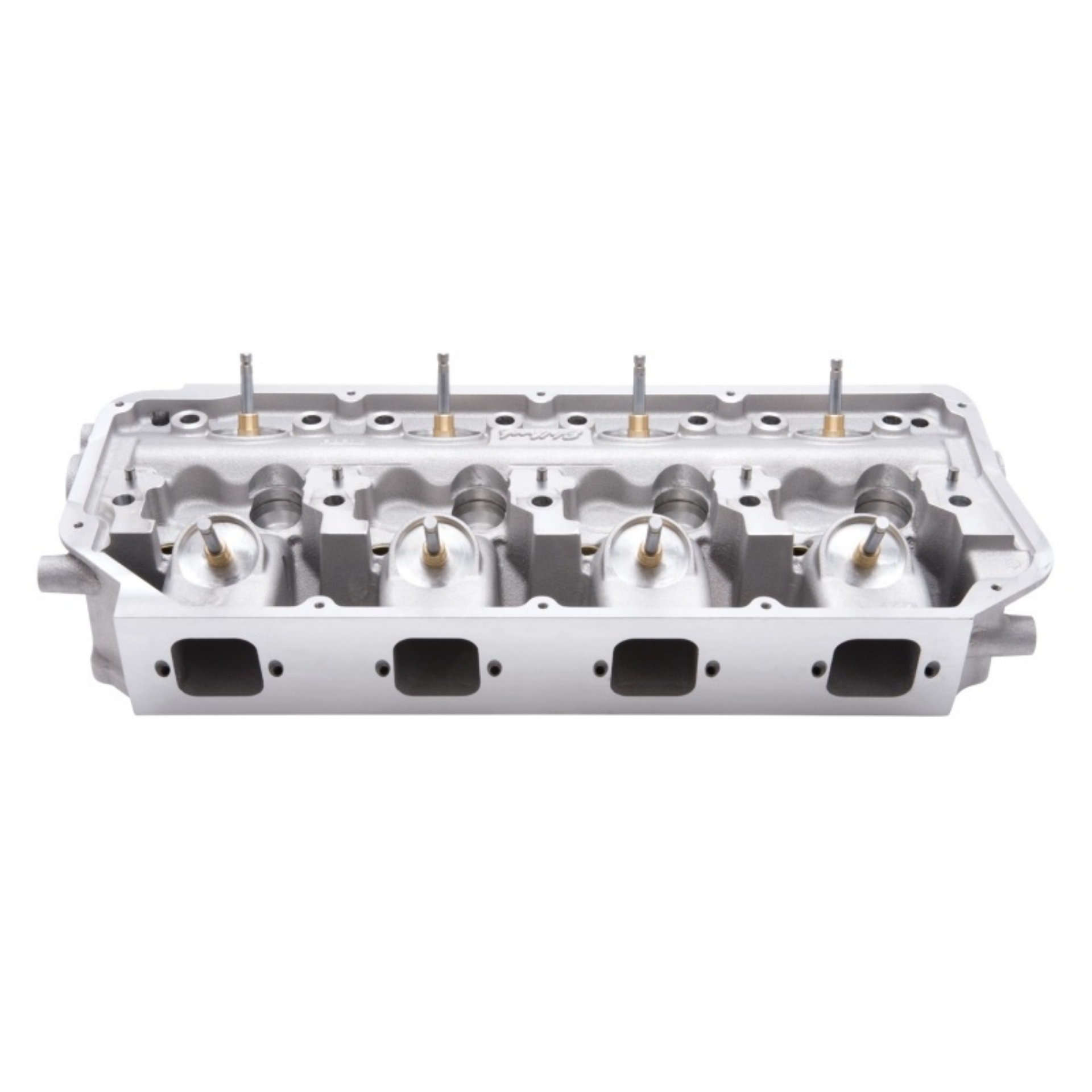

Edelbrock Single Victor Jr 170cc CNC 426-572 Hemi Bare Head w- Valves - ( Edelbrock 61189 )

Cylinder Head Specifications: Combustion chamber volume: 170cc; Intake runner volume: 245cc; Exhaust runner volume: 105cc; Intake valve diameter: 2.32"; Exhaust valve diameter: 1.94"; Valve stem diameter: 5/16"; Valve guides: Maganese Bronze; Deck thickness: 5/8"; Valve spring diameter: 1.54"; Valve spring maximum lift: .700"; Rocker stud: N/A; Guideplate: N/A; Pushrod diameter: 5/16" or 3/8"; Valve angle: Int. (stock) / Exh. Tipped 1.5° - 21.5°; Exhaust port location: Stock; Spark plug fitment: 14mm x 3/4 reach, gasket seat. * Our new Victor Jr. Cylinder Heads are designed for high output 650+ hp Chrysler 426-572 HEMI(R) engines. They feature fully CNC'd combustion chambers and CNC blended seats for optimal air flow performance. These cylinder heads also feature a revised exhaust valve angle to accommodate larger intake valves. They also feature brass tubes installed in exhaust pushrod holes to allow maximum clearance with minimal port intrusion.

Cylinder Head Specifications: Combustion chamber volume: 170cc, Intake runner volume: 245cc, Exhaust runner volume: 105cc, Intake valve diameter: 2.32in, Exhaust valve diameter: 1.94in, Valve stem diameter: 5/16in, Valve guides: Maganese Bronze, Deck thic

Edelbrock E-Force Supercharger Stage 1 Street part #1565 for 2014-16 Silverado, Sierra HD 1500 & 2014-16 Suburban, Tahoe, Yukon & Yukon XL increases your 5.3L Gen V engine to 445 HP and 421 ft/lbs. of torque at the rear wheels.

Cylinder Head, Victor Jr. CNC, Chrysler, 426-572 c.i.d V8, Bare, With Valves

Edelbrock Single Victor Jr 170cc CNC 426-572 Hemi Bare Head w/ Valves

Victor Jr Gen II HEMI Chrysler Cylinder Head CNC W/ Valves

Edelbrock; HEMI; V8; Cylinder Heads; 61189; Chrysler; 426

Victor Jr Gen II HEMI Chrysler Cylinder Head CNC W/Valves

Edelbrock, HEMI, V8, Cylinder Heads, 61189, Chrysler, 426

CYL HEAD CHRYSLER 426572 CNC HEMI BARE W/VALVES SINGLE

Chrysler:Big-Block Gen II HEMI:426 (7.0L)

Edelbrock Cylinder Head

Engine Cylinder Head

Cyl Heads-Race

CYL HEADS RACE

CYLINDER HEAD

{ eo : 2in.}

{"eo":"2"}

Cyl. Head
