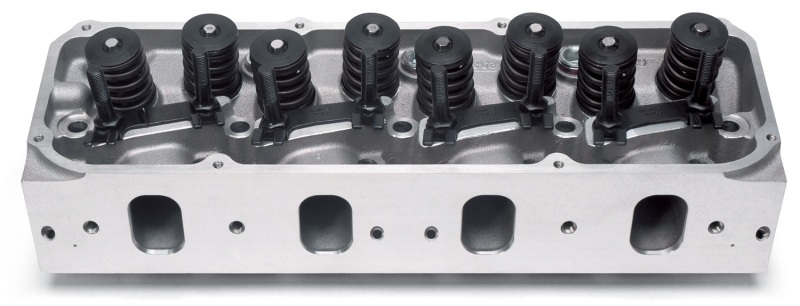

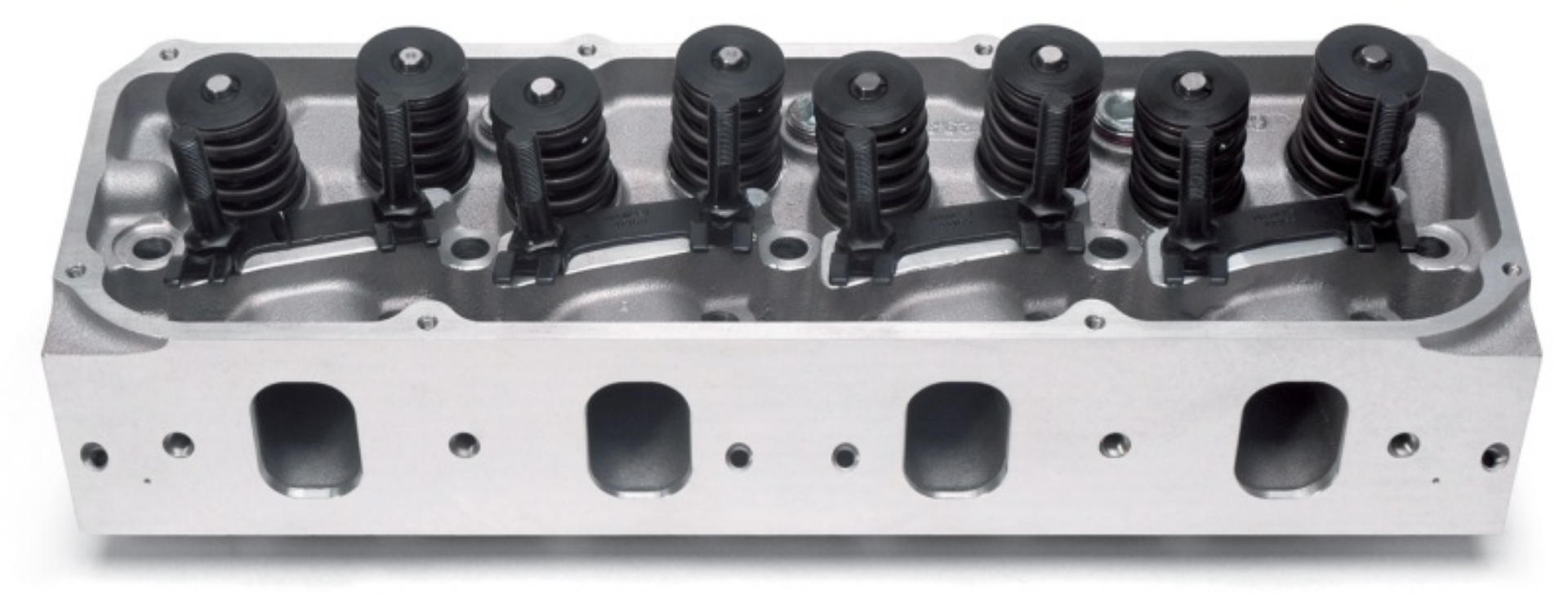

Edelbrock Cyl Head 351C Ford 2V Perf RPM Complete - ( Edelbrock 61629 )

Previous productEdelbrock Chevy Gen V LT4 P...

Next productEdelbrock Cyl Head Chrysler...

Availability: Special Order*

SKU: 61629

Manufacturer: Edelbrock

Be the first to review this product

$1,236.50

Qty:

Cylinder Head Specifications: Combustion chamber volume: 60cc, Intake runner volume: 190cc, Exhaust runner volume: 90cc, Intake valve diameter: 2.05in, Exhaust valve diameter: 1.60in, Valve stem diameter: 11/32in, Valve guides: Manganese bronze, Deck thickness: 5/8in, Valve spring diameter: 1.55in, Valve spring maximum lift: .580in, Rocker stud: 7/16in, Guideplate: Hardended steel, Pushrod diameter: 5/16in, Valve angle: Same as OE 9.5, Exhaust port location: Stock, Spark plug fitment: 14mm x 3/4 reach, gasket seat. INSTALLATION NOTE: Match with Edelbrock head gasket sets on pages 84-85. Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. Recommended spark plugs 14mm x 3/4in reach with flat gasket seat (Champion RC12YC). Deck thickness: 5/8in, rocker stud diameter: 7/16in, pushrod diameter: 5/16in (width of slot in guide plate). Valve sizes are recommended, not maximum. IMPORTANT NOTE: G?Compact chargeGg kidney shape combustion chamber design. Intake and exhaust ports based on 2V design. Optimized spark plug location provides improved header clearance. Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. Deck thickness: 5/8in, rocker stud diameter: 7/16in, pushrod diameter: 5/16in (width of slot in guide plate). Valve sizes are recommended, not maximum. Performer RPM Clevor cylinder heads with 7/16in bolts on 289/302 engines, use Edelbrock stepped head bolt washer kit No.9680.

Cylinder Head Specifications: Combustion chamber volume: 60cc; Intake runner volume: 190cc; Exhaust runner volume: 90cc; Intake valve diameter: 2.05"; Exhaust valve diameter: 1.60"; Valve stem diameter: 11/32"; Valve guides: Manganese bronze; Deck thickness: 5/8"; Valve spring diameter: 1.55"; Valve spring maximum lift: .580"; Rocker stud: 7/16"; Guideplate: Hardended steel; Pushrod diameter: 5/16"; Valve angle: Same as OE 9.5°; Exhaust port location: Stock; Spark plug fitment: 14mm x 3/4 reach, gasket seat. INSTALLATION NOTE: Match with Edelbrock head gasket sets on pages 84-85. Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. Recommended spark plugs 14mm x 3/4" reach with flat gasket seat (Champion RC12YC). Deck thickness: 5/8", rocker stud diameter: 7/16", pushrod diameter: 5/16" (width of slot in guide plate). Valve sizes are recommended, not maximum. IMPORTANT NOTE: “Compact charge” kidney shape combustion chamber design. Intake and exhaust ports based on 2V design. Optimized spark plug location provides improved header clearance. Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. Deck thickness: 5/8", rocker stud diameter: 7/16", pushrod diameter: 5/16" (width of slot in guide plate). Valve sizes are recommended, not maximum. Performer RPM Clevor cylinder heads with 7/16" bolts on 289/302 engines, use Edelbrock stepped head bolt washer kit #9680.

Cylinder Head Specifications: Combustion chamber volume: 60cc; Intake runner volume: 190cc; Exhaust runner volume: 90cc; Intake valve diameter: 2.05"; Exhaust valve diameter: 1.60"; Valve stem diameter: 11/32"; Valve guides: Manganese bronze; Deck thickness: 5/8"; Valve spring diameter: 1.55"; Valve spring maximum lift: .580"; Rocker stud: 7/16"; Guideplate: Hardended steel; Pushrod diameter: 5/16"; Valve angle: Same as OE 9.5°; Exhaust port location: Stock; Spark plug fitment: 14mm x 3/4 reach, gasket seat. INSTALLATION NOTE: Match with Edelbrock head gasket sets on pages 84-85. Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. Recommended spark plugs 14mm x 3/4" reach with flat gasket seat (Champion RC12YC). Deck thickness: 5/8", rocker stud diameter: 7/16", pushrod diameter: 5/16" (width of slot in guide plate). Valve sizes are recommended, not maximum. IMPORTANT NOTE: Compact charge kidney shape combustion chamber design. Intake and exhaust ports based on 2V design. Optimized spark plug location provides improved header clearance. Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. Deck thickness: 5/8", rocker stud diameter: 7/16", pushrod diameter: 5/16" (width of slot in guide plate). Valve sizes are recommended, not maximum. Performer RPM Clevor cylinder heads with 7/16" bolts on 289/302 engines, use Edelbrock stepped head bolt washer kit #9680.

Edelbrock Fuel Pressure Safety Switch #72211 can be used in conjunction with your nitrous systems to safeguard against inadequate fuel pressure. Preset at 7 psi.

Edelbrock; SBF; Head; 351c Cleveland Cylinder Head; Hydraulic Flat Tappet; Made In The USA; T-6; V8; Cylinder Heads; 61629

Edelbrock, SBF, Head, 351c Cleveland Cylinder Head, Hydraulic Flat Tappet, Made In The USA, T-6, V8, Cylinder Heads, 61629

RPM Small-Block Ford 351 Cleveland Cylinder Head Hydraulic Flat Tappet

Edelbrock Cyl Head; 351C FORD 2V Perf RPM; Complete

Edelbrock Cyl Head 351C Ford 2V Perf RPM Complete

Cyl Head; 351C FORD 2V Perf RPM; Complete

Ford:Small-Block Cleveland:351 (5.8L)

Edelbrock Cylinder Heads

Engine Cylinder Head

CYLINDER HEADS

CYLINDER HEAD

{ eo : 7in.}

{"eo":"7"}

Cyl. Head

Overview
Reviews
Contact Us

Cylinder Head Specifications: Combustion chamber volume: 60cc; Intake runner volume: 190cc; Exhaust runner volume: 90cc; Intake valve diameter: 2.05"; Exhaust valve diameter: 1.60"; Valve stem diameter: 11/32"; Valve guides: Manganese bronze; Deck thickness: 5/8"; Valve spring diameter: 1.55"; Valve spring maximum lift: .580"; Rocker stud: 7/16"; Guideplate: Hardended steel; Pushrod diameter: 5/16"; Valve angle: Same as OE 9.5°; Exhaust port location: Stock; Spark plug fitment: 14mm x 3/4 reach, gasket seat. INSTALLATION NOTE: Match with Edelbrock head gasket sets on pages 84-85. Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. Recommended spark plugs 14mm x 3/4" reach with flat gasket seat (Champion RC12YC). Deck thickness: 5/8", rocker stud diameter: 7/16", pushrod diameter: 5/16" (width of slot in guide plate). Valve sizes are recommended, not maximum. IMPORTANT NOTE: Compact charge kidney shape combustion chamber design. Intake and exhaust ports based on 2V design. Optimized spark plug location provides improved header clearance. Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. Deck thickness: 5/8", rocker stud diameter: 7/16", pushrod diameter: 5/16" (width of slot in guide plate). Valve sizes are recommended, not maximum. Performer RPM Clevor cylinder heads with 7/16" bolts on 289/302 engines, use Edelbrock stepped head bolt washer kit #9680.

Edelbrock Fuel Pressure Safety Switch #72211 can be used in conjunction with your nitrous systems to safeguard against inadequate fuel pressure. Preset at 7 psi.

Edelbrock; SBF; Head; 351c Cleveland Cylinder Head; Hydraulic Flat Tappet; Made In The USA; T-6; V8; Cylinder Heads; 61629

Edelbrock, SBF, Head, 351c Cleveland Cylinder Head, Hydraulic Flat Tappet, Made In The USA, T-6, V8, Cylinder Heads, 61629

RPM Small-Block Ford 351 Cleveland Cylinder Head Hydraulic Flat Tappet

Edelbrock Cyl Head; 351C FORD 2V Perf RPM; Complete

Edelbrock Cyl Head 351C Ford 2V Perf RPM Complete

Cyl Head; 351C FORD 2V Perf RPM; Complete

Ford:Small-Block Cleveland:351 (5.8L)

Edelbrock Cylinder Heads

Engine Cylinder Head

CYLINDER HEADS

CYLINDER HEAD

{ eo : 7in.}

{"eo":"7"}

Cyl. Head

Your name *

Your email *

Subject: *

Enquiry *

Vehicle Fitment

DeTomaso

Pantera

1986 GT5-S -

1985 GT5 -

1985 GT5-S -

1984 GT5 -

1984 GT5-S -

1983 GT5 -

1982 GT5 -

1981 GT5 -

1981 GTS -

1974 Base -

1973 Base -

1972 Base -

1971 Base

Ford

Country Sedan

1974 Base -

1973 Base -

1972 Base -

1971 Base -

1970 Base -

1969 Base

Country Squire

1974 Base -

1973 Base -

1972 Base -

1971 Base -

1970 Base -

1969 Base

Custom 500

1974 Base -

1973 Base -

1972 Base -

1971 Base -

1970 Base -

1969 Base

Galaxie 500

1974 Base -

1973 Base -

1972 Base -

1971 Base -

1970 Base -

1970 XL -

1969 Base -

1969 XL

Gran Torino

1974 Base -

1974 Brougham -

1974 Elite -

1974 Sport -

1974 Squire -

1973 Base -

1973 Sport -

1973 Squire -

1973 Brougham -

1972 Base -

1972 Sport -

1972 Squire

LTD

1974 Base -

1974 Brougham -

1973 Base -

1973 Brougham -

1972 Base -

1972 Brougham -

1971 Base -

1971 Brougham -

1970 Base -

1970 Brougham -

1969 Base

Ranch Wagon

1974 Base -

1973 Base -

1972 Base -

1971 Base -

1970 Base -

1970 Police Cruiser -

1969 Base

Ranchero

1974 500 -

1974 GT -

1974 Squire -

1973 500 -

1973 GT -

1973 Squire -

1972 500 -

1972 GT -

1972 Squire -

1971 Base -

1971 500 -

1971 GT -

1971 Squire -

1970 Base -

1970 500 -

1970 GT -

1970 Squire -

1969 Base -

1969 GT -

1969 500

Torino

1974 Base -

1973 Base -

1972 Base -

1971 Base -

1971 500 -

1971 Brougham -

1971 Cobra -

1971 GT -

1971 Squire -

1970 Base -

1970 Brougham -

1970 GT -

1970 Squire

Mustang

1973 Base -

1973 Grande -

1973 Mach 1 -

1972 Base -

1972 Grande -

1972 Mach 1 -

1972 Boss 351 -

1971 Base -

1971 Boss 351 -

1971 Grande -

1971 Mach 1 -

1970 Shelby GT-350 -

1970 Base -

1970 Grande -

1970 Mach 1 -

1969 Base

Custom

1972 Base -

1971 Base -

1970 Base -

1969 Base

Fairlane

1970 500 -

1969 Base -

1969 500

Falcon

1970 Base -

1970 Futura

Mercury

Colony Park

1974 Base -

1973 Base -

1972 Base -

1971 Base -

1970 Base

Cougar

1974 XR-7 -

1973 Base -

1973 XR-7 -

1972 Base -

1972 XR-7 -

1971 Base -

1971 XR-7 -

1970 Base -

1970 XR-7

Marquis

1974 Base -

1974 Brougham -

1973 Base -

1973 Brougham -

1972 Base -

1972 Brougham -

1971 Base -

1971 Brougham -

1970 Base -

1970 Brougham

Montego

1974 Base -

1974 MX -

1974 MX Brougham -

1974 Villager -

1973 Base -

1973 GT -

1973 MX -

1973 MX Brougham -

1973 Villager -

1972 Base -

1972 GT -

1972 MX -

1972 MX Brougham -

1972 Villager -

1971 Base -

1971 MX -

1971 MX Brougham -

1971 Villager -

1970 Base -

1970 MX -

1970 MX Brougham -

1970 Villager -

1969 Base -

1969 MX

Monterey

1974 Base -

1974 Custom -

1973 Base -

1973 Custom -

1972 Base -

1972 Custom -

1971 Base -

1971 Custom -

1970 Base -

1970 Custom

Cyclone

1971 Base -

1971 GT -

1971 Spoiler -

1970 Base -

1970 GT -

1970 Spoiler -

1969 Base

Comet

1969 Base

*we take fitment seriously and have invested heavily into matching products to your vehicle, but it is up to the end user to confirm products are suitable for their vehicle, legal for them to use for the purposes they intend, and verify fitment upon installation. Many opened products may not be returned, so if fitment is in question, please contact us before ordering. We are not resonsible for any costs incurring from a product not being suitable to an end users application.
